PGH

Standard series in X arrangement. The HIWIN linear guideways of the HG series with four ball tracks are designed for high loads and rigidities. Due to the 45° arrangement of the ball tracks, the HG series can take loads from all directions equally. The models of the QH series with SynchMotion™ technology offer all the advantages of the standard HG series. Controlled movement of the balls at a defined distance also results in improved synchronous performance, higher reliable travel speeds, extended lubrication intervals and less running noise.
10 product(s)
Configurator
Type
H
W
L
Cdyn
C0
H1

W1

L1

M0X

M0Y

M0Z

PGHH20CA
 30 44 118 27.100 36.680
PGHH20HA
 30 44 132,7 32.700 47.960
PGHH25CA
 40 48 124,5 34.900 52.820
PGHH25HA
 40 48 145,1 42.200 69.070

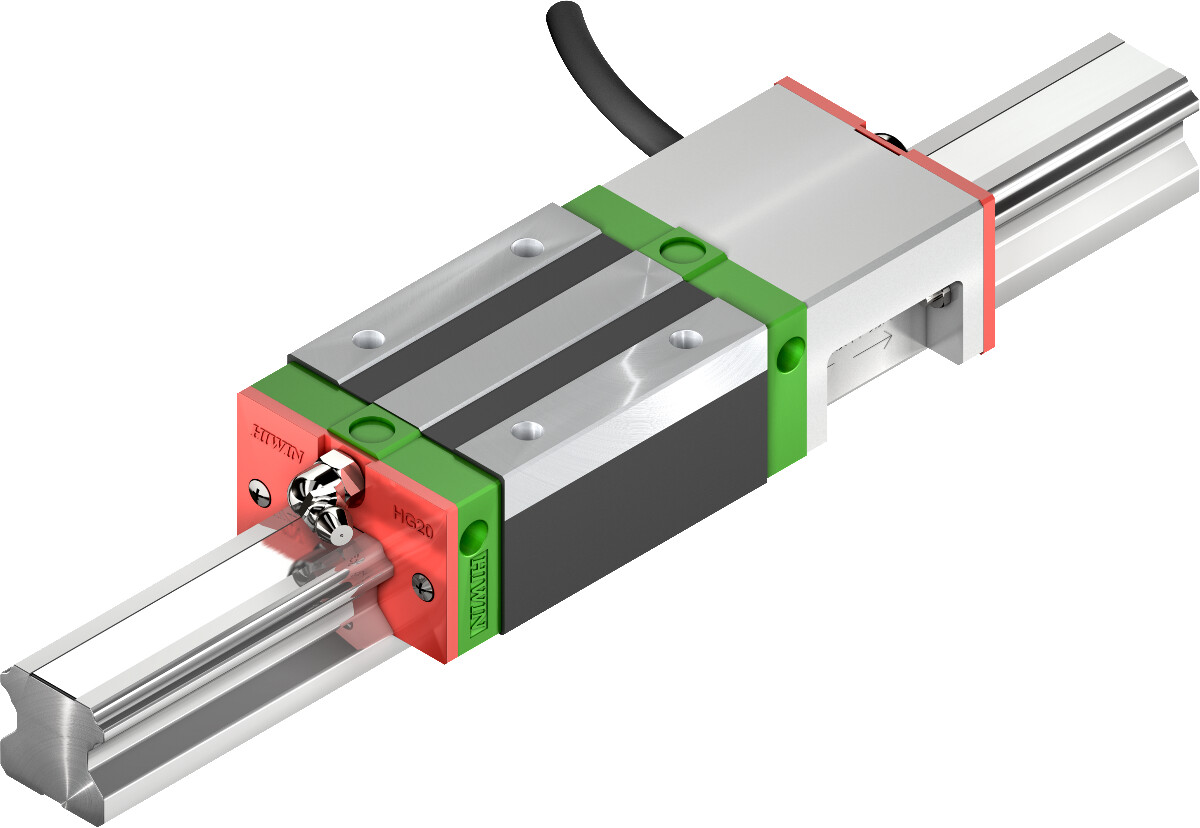

PGHL25CA
 36 48 124,5 34.900 52.820
PGHL25HA
 36 48 145,1 42.200 69.070
PGHW20CC
 30 63 118 27.100 36.680
PGHW20HC
 30 63 132,7 32.700 47.960
PGHW25CC
 36 70 124,5 34.900 52.820
PGHW25HC
 36 70 145,1 42.200 69.070
