RG-35-E2-KIT-SS | Long-time lubrication unit | Linear guideway accessories | Linear guideways | Products

Dimensions
W		68,8	mm
T		13,5	mm
V		3,5	mm
	Oil quantity	10,7	cm³
	Running performance with one-sided lubrication unit	4.000	km
	Running performance with two-sided lubrication unit	8.000	km

Name	Category	Product	Size	Language
Linear guideways	Assembly Instructions	Linear guideways	4 MB	EN EN DA DE FR HU NL PL
Linear guideways	Project planning sheet	Linear guideways	2 MB	EN EN DE FR
Linear guideways	Catalogue	Linear guideways	7 MB	EN EN DE FR
CG linear guideways	Flyer	Linear guideways	0.29 MB	EN EN DA DE FR HU NL PL

Go to download centre

Principle of operation

Principle of operation of a linear guideway

A linear guideway makes it possible to move in a linear motion with rolling elements. The use of balls and rolls between the rail and block in a linear guideway makes precise linear movements possible.

Lubrication

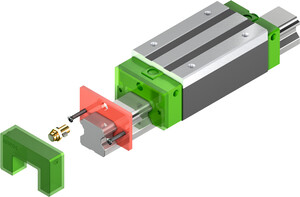

Long-time lubrication unit of a linear guideway

The long-time lubrication unit for linear guideways makes it possible to increase lubrication intervals many times over, thereby considerably reducing the number of maintenance intervals. If needed, up to two long-time lubrication unit can be installed per block.

Assembly

Assembly and disassembly of cover caps

The cover caps are used to keep the mounting holes of the profile rails free of chips and dirt. In this video, we show you how to easily assemble and disassemble steel, brass or plastic cover caps.
