Type:

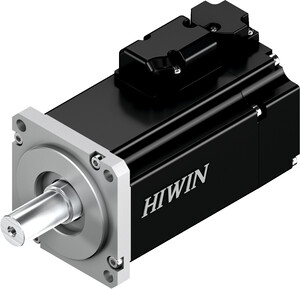

EM1-C-M-40-2-0-F-0-D
Article number:
8-07-0213
CAD

Torque-speed diagram

Dimensions

Technical data of motor
Tc Nominal torque 1,27 Nm
Ic Nominal current 2,5 Aeff
Tp Peak torque (for 1 sec.) 4,44 Nm
Ip Peak current (for 1 sec.) 10 Aeff
nN Nominal speed 3.000 1/min
nmax Maximum speed 6.000 1/min
P Nominal power 400 W
V Nominal voltage 220 V AC
KT Torque constant 0,508 Nm/Aeff
Ke Back EMF constant 33,87 Veff/(1.000min-1)
R Winding resistance 3,59 Ω
L Winding inductance 7,22 mH
J Mass inertia moment 0,48 kgm² × 10-4
Mass 1,25 kg
Motor insulation class Class F
Environmental conditions
Ambient temperature 0 °C to 50 °C
Storage temperature -15 °C to 70 °C
Air humidity Up to 80% relative humidity
Max. installation height 1,000 m above sea level
